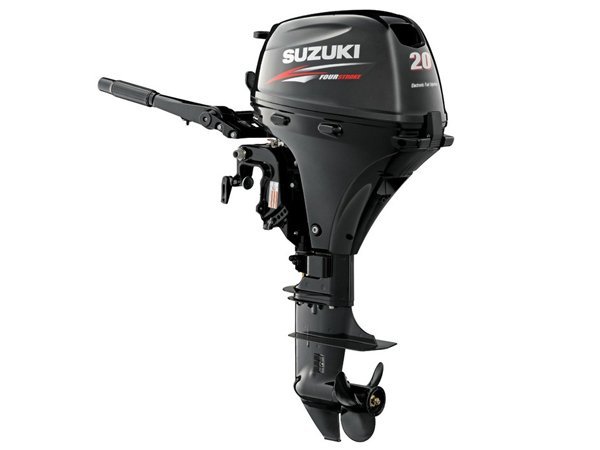

Suzuki 20 HP DF20ATHL2 Outboard Motor
$1,263.00

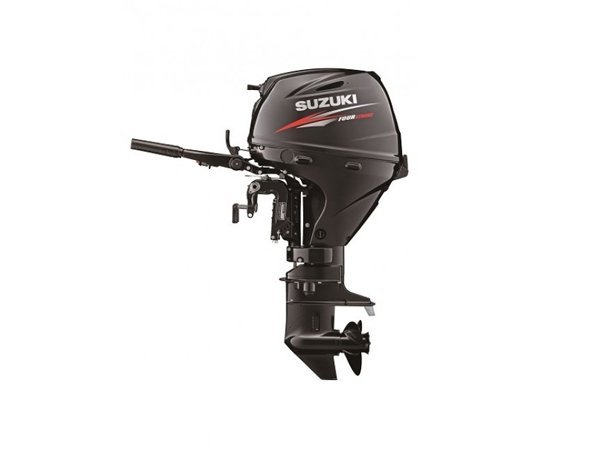

Suzuki 25 HP DF25AES Outboard Motor
$1,495.00
Suzuki 20 HP DF20ATL Outboard Motor
$1,387.00
Description

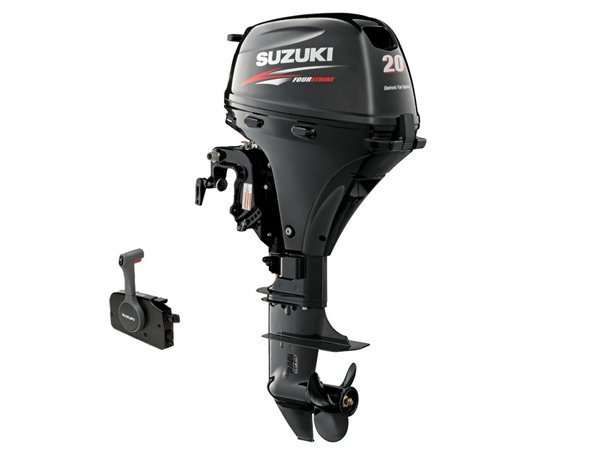

Suzuki 20 HP DF20ATL Outboard Motor
The 20 HP Suzuki outboard model # 20 HP DF20ATL comes with every feature you could want. Equipped with a 20 inch shaft this outboard has electric push button start and remote tiller and throttle control. Perfect for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. As the lightest outboard in its class and one of the quietest 4-strokes ever built, the Suzuki 20hp outboard engine is a great example of Suzuki’s excellence in engineering.
Suzuki 20 HP DF20ATL Outboard Motor
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest Outboard in 20hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Side Mount Control Box (includes harness)
- Remote Throttle/Shift (cables not included)
- Steering Link Arm (cable not included)
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Quiet Through-the-Prop Exhaust
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Transom Bracket Mounting Hardware
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Up to 17% more fuel efficient over
some competitor’s 4-strokes - Suzuki 3-Year Warranty
Suzuki 20 HP DF20ATL Outboard Motor
| Model | DF20ATL |
| Model Year | No |
| SKU | DF20ATL-17 |
| Weight | 120.0000 |
| Manufacturer | Suzuki |
| Country of Manufacture | Thailand |
| Horsepower | 20hp |
| Shaft Length | 20″ (Long) |
| Steering | Remote |
| Starting | Electric |
| Trim & Tilt | Power Tilt |
| Fuel Delivery | EFI |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 327 cc (20.0 cubic inches) |
| Bore and Stroke | 60.4 x 57 mm (2.38 x 2.24 inches) |
| Full Throttle RPM Range | 5300-6300 RPM |
| Ignition System | Digital CDI |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| Oil Type | SAE 10W-30 or SAE 10W-40 |
| Oil Capacity | 33.8 fl oz. (1000 mL) |
| Lubrication | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| Alternator | 12V 145W 10A |
| Cooling System | Water-Cooled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (side mount control box) |
| Propeller | 3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch |
| Internal Battery | No |
Suzuki 20 HP DF20ATL Outboard Motor
What’s in the box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
